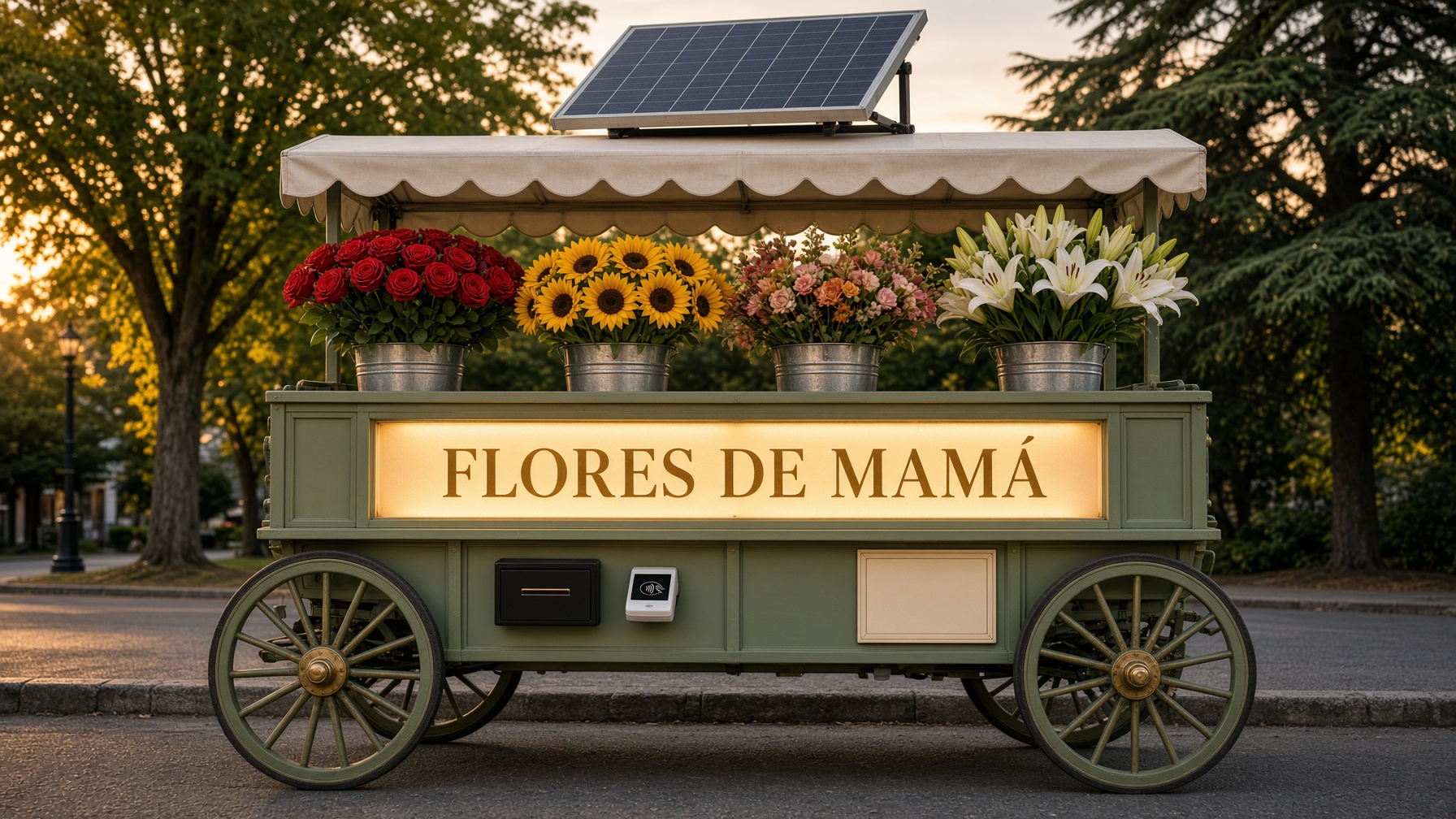

Finished Flores de Mamá cart, front view, at the curb in evening light

Finished · front of the design

FLORES DE MAMÁRoadside flower cartVictoria, BC · Rev A · 2026-10-02Front elevationMillimetres · views labeledScale 1:12 · dimension winsSheet 1 of 6Issued for fabricationTow tongue · 2 inch ballILLUMINATED SIGN1460 × 400 LED 24 WCASHTAPPRICESHANDLE2 IN BALL1450 TO BALL1700 BODY1820 ROOF1400 WHEELBASE750 DECK1760 ROOF400 SIGNTongue is on the handle end. Pull the two pins and it comes off at the curb.
FLORES DE MAMÁRoadside flower cartVictoria, BC · Rev A · 2026-10-02End elevationMillimetres · views labeledScale 1:12 · dimension winsSheet 2 of 6Issued for fabricationTow tongue · 2 inch ballBATT200 W36°820 OVER BODY760 TRACK2230 HIGHFRONTREARAim the glass south at 36°. Keep the low edge about 50 mm clear of the roof.
FLORES DE MAMÁRoadside flower cartVictoria, BC · Rev A · 2026-10-02PlanMillimetres · views labeledScale 1:12 · dimension winsSheet 3 of 6Issued for fabricationTow tongue · 2 inch ballPV MODULE UNDERCASHBATTERYLOCK PIN1820 ROOF1450 TO BALL820TONGUELAMPSFRONT · SIGNTongue pins off for the curb. On the road, lock the kingpin, latch the 2 inch coupler, and cross the chains.
FLORES DE MAMÁRoadside flower cartVictoria, BC · Rev A · 2026-10-02Rear elevationMillimetres · views labeledScale 1:12 · dimension winsSheet 4 of 6Issued for fabricationTow tongue · 2 inch ballBATTERY BOX320 × 180 × 160REAR PANEL · NO SIGN3201801760Battery box stands proud of the rear panel so it lifts out without dropping the deck.
FLORES DE MAMÁRoadside flower cartVictoria, BC · Rev A · 2026-10-02IsometricMillimetres · views labeledScale 1:12 · dimension winsSheet 5 of 6Issued for fabricationTow tongue · 2 inch ballShaded model for the builder. Same cart as the elevations. Not to the 1:12 scale.

Sheet 6 of 6

Cut list

Aluminum frame and thin plywood, so one person can push it across a lot. Hitch it for a hill. Buy the pneumatic wheels and the solar module first.

MarkQtyPartMaterialSize, mm
A2Lower side rail6061-T6 aluminum50 × 50 × 3 × 1580
B2Lower cross rail6061-T6 aluminum50 × 50 × 3 × 560
C4Deck post6061-T6 aluminum40 × 40 × 3 × 296
D4Roof postAluminum tube32 OD × 3 wall × 736
E2AxleSteel spindleØ16 × 900, match the hub
F1KingpinSteelØ20 × 80, handle-end axle
G4WheelPneumatic400 OD × 70, light hub, 16 mm bore
H1DeckExterior plywood1660 × 780 × 12
J2Long panelExterior plywood1700 × 255 × 12
K2End panelExterior plywood780 × 255 × 12
L1RoofExterior plywood1820 × 960 × 6
M1Sign boxThin cedar, acrylic face1460 × 400 × 60, 3 mm face
N1PV module200 W1320 × 670 × 35, 36° facing south
P1Charge controllerMPPT 10 A12 V, in the battery box
Q1BatteryLiFePO412 V, 40 Ah, 480 Wh
R1Battery boxSealed, fused320 × 180 × 160
S1Cash boxSteel, keyed260 × 140 × 100, slot 110 × 12
T1Tap shelfAluminum180 × 240 face, 34° up
U2Handle uprightAluminum tubeØ32 × 550
V1Handle gripAluminum tubeØ32 × 500
W2Tongue rail6061-T6 aluminum50 × 50 × 3, about 1600 long
X1Coupler2 inch ballRated 900 kg, latch and lock
Y1Tongue jackSwivel450 kg, wheel, stows up
Z2Safety chainGrade 30 or betterCrossed, clevis hooks, from the frame
AA3Hitch pinSteelØ16, hairpin clips, two for the tongue, one locks the kingpin
AB1Lamp setLED, 12 VTail, stop, turn, plate lamp, amber and red markers
AC1Harness4-pin flatWhite ground, brown tail, yellow left, green right

Notes for the shop

  1. Units are millimetres. Print A3 landscape at 100% so the views stay 1:12.
  2. Do not scale a fitted PDF. If a dimension and the graphic disagree, the dimension wins.
  3. Frame, posts, handle, and tongue are 6061-T6 aluminum, not steel. TIG weld with 5356 filler. If the shop cannot weld aluminum, bolt the joints with stainless brackets.
  4. Where aluminum meets the steel axles, coupler, or cash box, tape the joint. Victoria rain will pit bare aluminum against steel.
  5. Skin is 12 mm exterior plywood. The roof is 6 mm. Seal every edge. Do not use 19 mm sheet or a steel frame. That is what makes it too heavy to push.
  6. Wheels are 400 mm pneumatic with light hubs, not steel wagon wheels. They roll across a parking lot and over a curb lip.
  7. Battery is lithium, about 5 kg. Do not fit a lead-acid battery.
  8. Empty, the cart is about 90 kg. With the day's buckets, about 120 kg. That is an estimate. Weigh it before you plate it.
  9. In a parking lot, pull the tongue off and push from the handle. The near axle steers. On a hill or a road, hitch it and tow. Do not push a loaded cart up a grade.
  10. Handle-end axle steers for pushing. Before towing, lock that kingpin so the axle cannot pivot.
  11. The tongue is removable. Two pins hold the A-frame to the lower frame. Take it off at the curb so it does not stick into the sidewalk.
  12. Coupler is a 2 inch ball, about 430 mm off the ground when the cart is level. Latch it and pin the latch.
  13. Cross the safety chains under the tongue. They attach to the frame, not only to the coupler.
  14. Four tires stay on the road, so they scrub in a tight turn. Take the turn wide.
  15. Put about 15 to 25 kg on the ball. If the tongue lifts, shift buckets toward the hitch.
  16. Lights are required on a B.C. road: tail, brake, turn, plate lamp, and side markers. Plug the 4-pin into the vehicle and check them before you move.
  17. Brakes are not drawn. B.C. requires them if the loaded trailer is over 1 400 kg, or over half the weight of the tow vehicle. This cart should stay well under that. Confirm the loaded weight.
  18. Register and plate it with ICBC before it goes on a public road. This drawing is not a certification, a VIN, or an inspection.
  19. Sign is a gasketed lightbox, 12 V LED, about 24 W. Acrylic face, printed vinyl behind it.
  20. Panel, controller, and battery are 12 V. Fuse the panel at 10 A and the battery feed at 20 A. Reader on its own 3 A fuse.
  21. Bond the module frame and the aluminum cart to battery negative. Use outdoor cable and drip loops.
  22. Cash box is mechanical. It does not need power. Bolt it through the front panel.
  23. Confirm the module hole pattern and the wheel bore before drilling.
  24. Victoria street vending needs a city permit. This drawing is the cart, not the permit.
